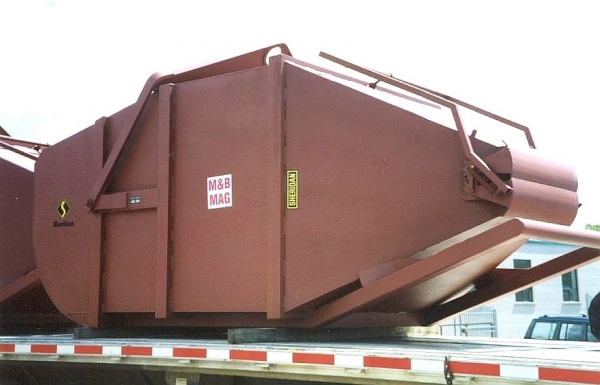

LAYDOWN STEEL BUCKETS
M&B MAG Laydown Steel Concrete Buckets:
- Provide extra low loading height for easy, direct loading from concrete trucks.
- Precisely balanced to automatically go to position for vertical discharge.
| Laydown Steel Concrete Buckets | ||||||||||||||
| Bucket Model |

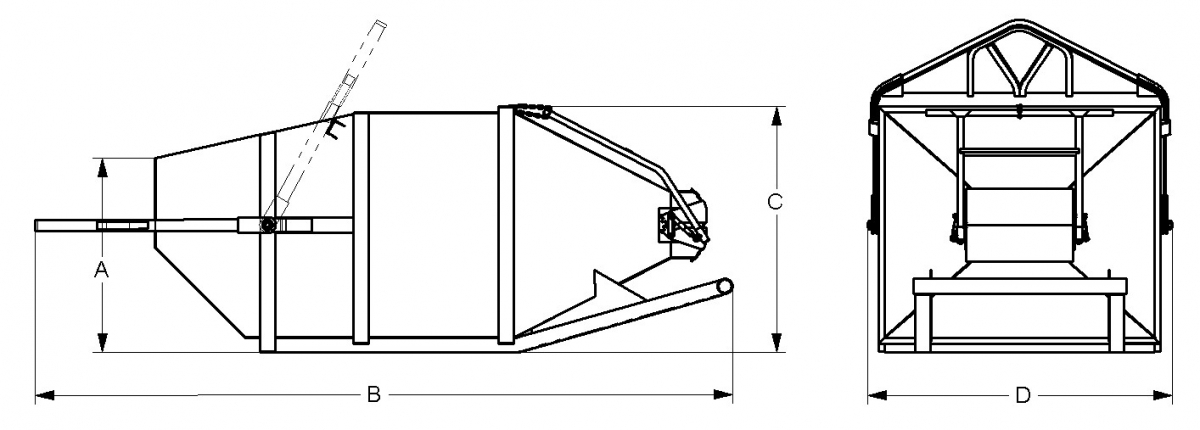

Capacity | Loading Height “A” | Lifting Height “B” | Bucket Height “C” | Bucket Width “D” | Gate Size | Weight | |||||||
| yd3 | m3 | in | mm | in | mm | in | mm | in | mm | in | mm | lbs | kg | |
| LDS-30 | 3 | 2.4 | 40 | 1015 | 133-1/4 | 3385 | 56 | 1420 | 67 | 1700 | 18 x 24 | 455 x 610 | 2030 | 920 |
| LDS-40 | 4 | 3.1 | 43-1/4 | 1100 | 144-1/2 | 3670 | 60 | 1525 | 73 | 1855 | 18 x 24 | 455 x 610 | 2310 | 1050 |
| LDS-50 | 5 |
3.9 |
48-1/4 |
1225 |
153-1/2 |
3900 |
66 |
1675 |
80 |
2030 |
18 x 24 |
455 x 610 | 2580 |
1170 |
| LDS-60 | 6 |
4.6 |
48-1/4 |
1225 |
164-1/4 |
4170 |
66 |
1675 |
80 |
2030 |
18 x 24 |
455 x 610 | 2750 |
1250 |
Each bucket is complete with pivot bale. We reserve the right to make specification, equipment and price changes without notice.
