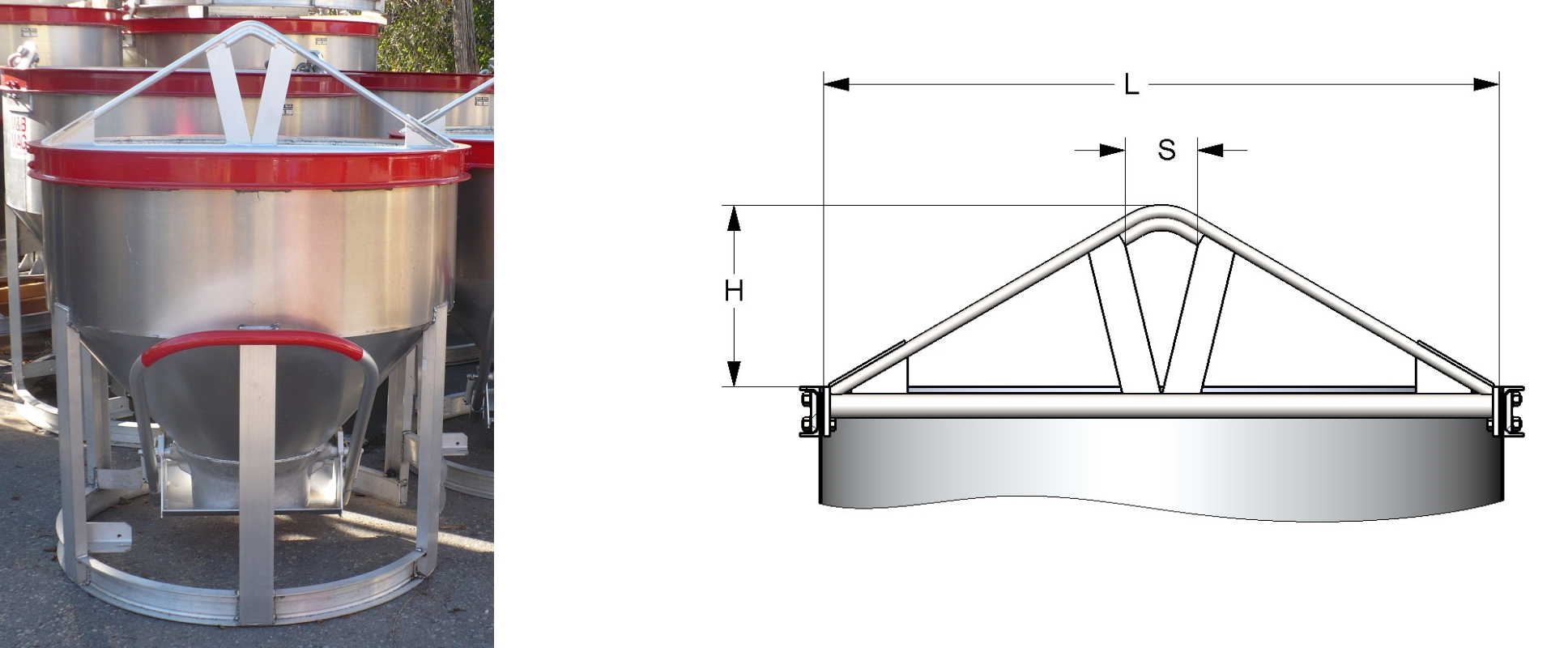

Our “Type 1” fixed lifting bale is an optional suspension accessory for our buckets of up to 5 yd3 capacity. It provides lower overall (under the hook) height of the bucket. This option is only available when ordered with a new bucket.
| Fixed Lifting Bale – Type 1 | |||||||
| Bale Model | For Bucket Models | L | H | S | |||
| in | mm | in | mm | in | mm | ||
| FB-7 | BB-3-FB, BB-5-FB, BB-7-FB, SBB-3-FB, SBB-5-FB, SBB-7-FB |
45 | 1145 | 12-3/4 | 325 | 5-5/8 | 145 |
| FB-15 | BB-10-FB, BB-12-FB, BB-15-FB, SBB-10-FB, SBB-12-FB, SBB-15-FB |
54 | 1370 | 15-3/4 | 400 | 5-5/8 | 145 |
| FB-30 | BB-20-FB, BB-25-FB, BB-30-FB, SBB-20-FB, SBB-25-FB, SBB-30-FB |
68 | 1730 | 19 | 480 | 7 | 180 |
| FB-50 | BB-40-FB, BB-50-FB, SBB-40-FB, SBB-50-FB |
79-1/2 | 2020 | 19 | 480 | 7 | 180 |
Our “Type 2” fixed lifting bale is another optional suspension accessory for our buckets of 4 yd3 capacity and larger. It provides lower overall (under the hook) height of the bucket. This option is only available when ordered with a new bucket.
| Fixed Lifting Bale – Type 2 | |||||||
| Bale Model | For Bucket Models | L | H | S | |||
| in | mm | in | mm | in | mm | ||
| FB-50C | BB-40-FBC, BB-50-FBC, SBB-40-FBC, SBB-50-FBC |
80-1/4 | 2040 | 13-1/2 | 340 | 6 | 150 |
We reserve the right to make specification, equipment and price changes without notice.
PLEASE NOTE: when ordering a bucket with lifting bale – add “FB” to the bucket model. For example, a 2 yd3 upright aluminum bucket with lifting bale is BB-20-FB.
For more technical information about our lifting bale options please contact us.
