SQUARE STEEL BUCKETS

Square Steel Buckets, FB-xx and FBM-xx series, are the most capacity efficient steel buckets produced by M&B MAG. These buckets feature concrete tight clamshell gate and range from 1/2 cubic yard capacity (0.4 cubic meter) for FB-5 model to 1-1/2 cubic yard capacity (1.2 cubic meter) for FBM-15-FL model.


Square Steel Concrete Buckets FB series

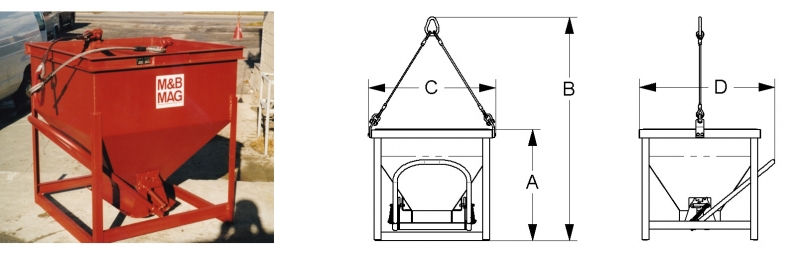

Bucket Model	Capacity		Loading Height “A”		Lifting Height “B”		Width “C”		Depth “D”		Gate Size		Weight
Bucket Model	yd³	m³	in	mm	in	mm	in	mm	in	mm	in	mm	lbs	kg
FB-5	1/2	0.4	35	890	77-3/4	1975	45	1145	50	1270	15 x 15	380 x 380	410	185
FB-7	3/4	0.6	41	1040	83-3/4	2125	45	1145	50	1270	15 x 15	380 x 380	455	205
FB-10	1	0.8	50	1270	95-1/2	2425	45	1145	50	1270	15 x 15	380 x 380	550	250
FB-12	1-1/4	1.0	56	1420	101-1/2	2580	45	1145	50	1270	15 x 15	380 x 380	580	265


Square Steel Concrete Buckets FBM series
Bucket Model	Capacity		Loading Height “A”		Lifting Height “B”		Width “C”		Depth “D”		Gate Size		Weight
Bucket Model	yd³	m³	in	mm	in	mm	in	mm	in	mm	in	mm	lbs	kg
FBM-10-FL	1	0.8	34	865	85-1/2	2170	62	1575	65	1650	15 x 15	380 x 380	680	310
FBM-15-FL	1-1/2	1.2	38-1/2	980	96	2440	71	1805	71	1805	15 x 15	380 x 380	760	345

Fork pockets size is 8″ x 3″ (200 mm x 75 mm)

Each bucket is complete with wire rope sling. Bucket weight includes wire rope sling. We reserve the right to make specification, equipment and price changes without notice.
